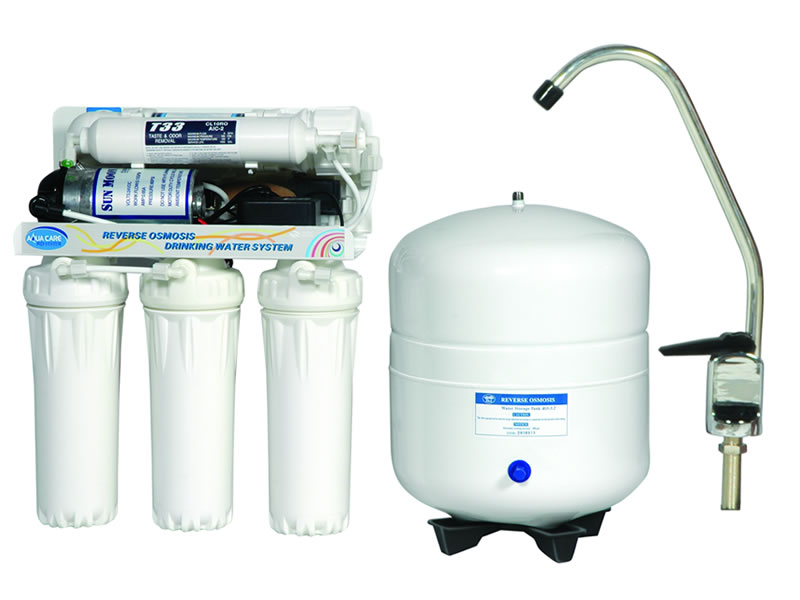

OPEN FLOW WITH TANK – 10/25 LPH
System Application: Domestic RO Water Treatment System can be used in Home, Shop and Office etc.Product Feauters
- 75 GPD High Pressure pump of Aquaa Care
- N.F.S. Approved, leak proof connectors, fittings and tubes
- N.F.S. Approved, Non-Toxic Filter Housing made up of food grade polymers
- Fully automatic system with auto ON/OFF facility.
- High purifying capacity of Aquaa Care Membrane which produces 12 liter water per hour. Purifies impure water to sweet pure drinking water. Removes bacteria and virus
- Availability of water as per requirement, even in absence of electricity.
- Low cost of maintenance and consumables.
Different stages of treating water:
(Stage 1) 5Micron Sediment Filter:
With five micron rating, it is effective in removing dirt, rust and sand particles.
(Stage 2) 5 Micron Inline Sediment Filter :
With five micron rating, it is effective in removing dirt, rust and sand particles.
(Stage 3) Granular Activated Pre Inline Carbon Filter:
It takes out 99% of the chlorine and organic chemicals. It provides enhanced reduction of taste, odor, and color.
(Stage 4) Reverse Osmosis Membrane:
A thin film composite high quality Aquaa Care membrane processes 75 gallons water per day. It removes the hard water contaminants that may be present in water, like - lead, cooper, barium, chromium, mercury, sodium, cadmium, fluoride, nitrite and selenium. It also removes Bacteria and Virus from water.
(Stage 5) Post Carbon Inline Filter:
It removes objectionable tastes and odors to enhance the quality of drinking water.
Specification – 10 LPH RO Plant:
| Purification Capacity | 12 liters/hour |
| Max.Duty Cycle | 75 liters/ day |
| Storage Tank Capacity | 8 Liters |
| Filter Cartridges | Sediment, Activated Carbon, UF, Post Carbon |
| RO Membrane | 1812-75 GPD Aquaa Care |
| Booster Pump | 75 GPD Aquaa Care |
| Min.Inlet Water Pressure | 0.25 Kg/cm2 |
| Input Voltage | 160-300V AC (50Hz) |
| Operating Voltage | 24V DC/36 VDC |
Specification – 25 LPH RO Plant:
| TECHNICAL SPECIFICATION | |
| Description | Commercial - 50 LPH RO |
|---|---|
| Flow Rate | 25 LPH |
| Max. Duty Cycle | 200 LDP |
| Filter Cartridge | Sediment, Activated Carbon and Post Carbon |
| Power Consumption | 40-60 Watt |
| Min. Feed Water Pressure | 1.5 Kg/cm2 |
| Dimensions L x W x H | 67cm x 25cm x 73cm |
| Separate Storage Tank | Optional |
| RO Membrane | 75 GPD (5 Nos), Aquaa Care Membrane |
| Booster Pump | 75 GPD (2 Nos), Aquaa Care Pump |
| Max. Feed Water TDS (Total Dissolved Solids) | 1500 ppm |
| Max. Feed Water Hardness | 400 ppm |
| Input voltage | 160-300V AC (50Hz) |
