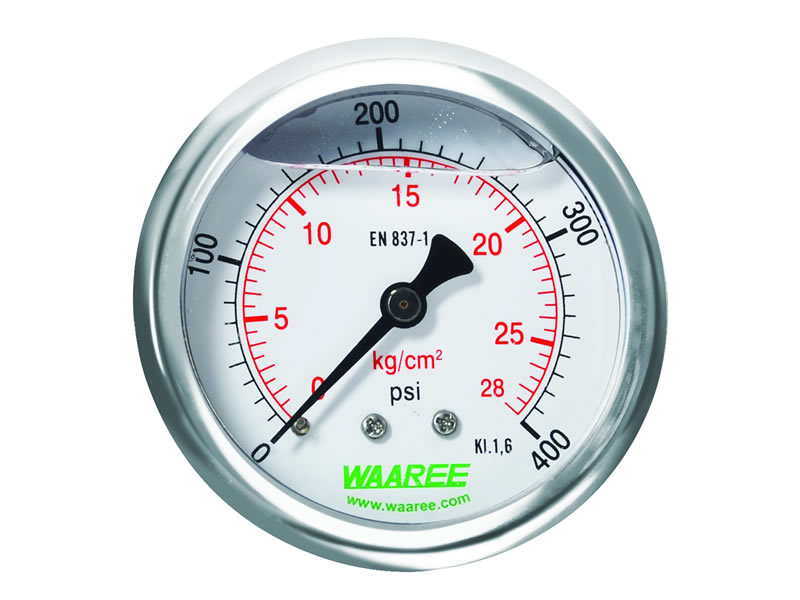

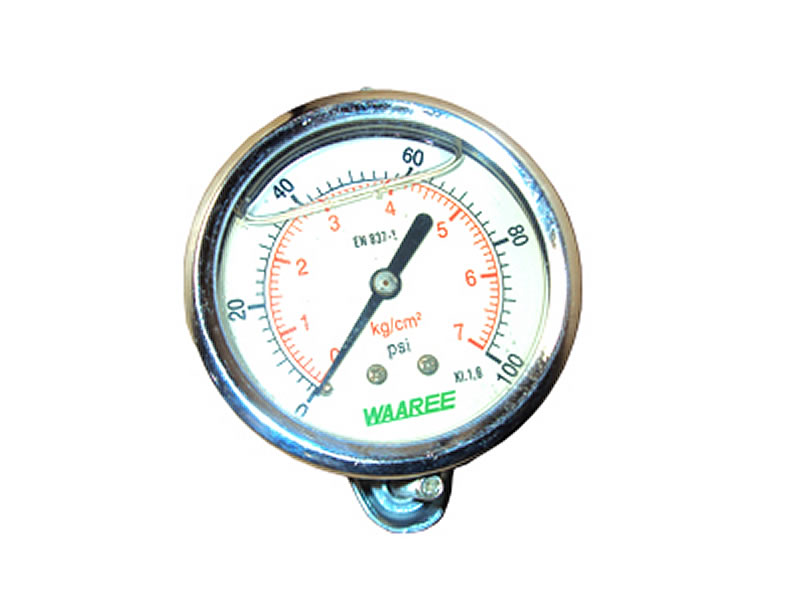

PRESSURE GAUGE
Applications:
Oil, water, pneumatics, hydraulics, pump, compressors, diesel engines and gaseous/ liquid media that will not obstruct the pressure system.
Special Features:
- Stainless Steel Case
- Rugged Construction
- Cost Effective
- Standard Followed In General En 837-1
Specifications of standard version : 40 mm, 50 mm, 63 mm, 80 mm & 100 mm
Accuracy |
± 1.6% of F.S. (For NS 63mm, 80mm & 100 mm) &± 2.5% of F.S. (For NS 40mm, 50mm) |
| Ambient Temperature | - 20°C to + 65°C |
| Process temperature | Max. 150°C |
| Operating Pressure Range | 75 % of Scale Value |
| Over Pressure Limit | ≤ 100 bar : 125% of Max. Scale Value > 100 to < 600 bar : 115% of Max. Scale Value |
| Case & Bezel | AISI 304 SS (Rolling Type) & Bayonet type for NS 80 mm |
| Bourdon, Movement & Socket | Copper Alloy |
| Joints | Alloy Brazing / Soldering |
| Protection | IP 65 |
| Dial | Aluminium, black graduation on white background |
| Pointer | Aluminum, black Coloured, Fixed |
| Window | Plexi Glass |
| Filling Plug | Neoprene |
| Gasket | Neoprene/Silicon Rubber |
| Fillable Dampening Liquid | Glycerine 99.7% |
| Ambient Temperature | Maximum 65°C |
| Process temperature | Maximum 65°C |
