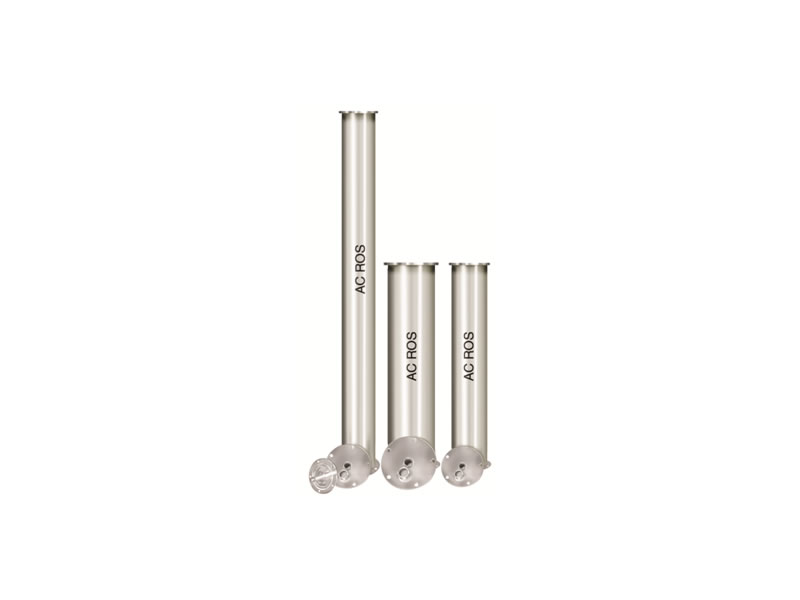

SS PRESSURE TUBE
Aquaa Care is fabricating optimum quality R.O Pressure Tubes using quality components. These are specially manufactured by our engineers to meet the demands of our customers. Our tubes are appreciated for robust construction, dimensional accuracy and longer service life.
Features:
- Materials of the housing stainless steel 304 or 316
- Membrane housing can be fix with 1-6 stage RO membranes
- Membrane housing pipe has seamless
- Stainless steel high polished exterior
- Double “O” ring for sealing integrity
- Pressure rating 450 PSI
- Entry end connections
- Fit for all size of membrane elements
- Flamed end for easy access, robust constructions
- No threading failure
Technical Specification:
| Specification | 4” inch | 8” inch |
|---|---|---|
| I.D. | 102 mm | 202 mm |
| O.D. | 108 mm | 208 mm |
| Thickness | 3 mm | 3 mm |
| Flange Thickness | 6 mm | 6mm |
| End Cap | 6 mm | 6 mm |
| Connector for Membrane | SS | SS or ABS |
Size of Elements:
| Items | Description |
|---|---|
| 2.5” Inch AC ROS-SS Membrane Housing | 2.5” x 21” – SS Cap (1/E) |
| 2.5” x 40” – SS Cap (1/E) | |
| 2.5” x 80” – SS Cap (2/E) | |
| 4” Inch RO Membrane Housing (1 to 6 Elements) | AC- 40 x 40 (1/E) |
| AC- 40 x 80 (2/E) | |
| AC- 40 x 120 (3/E) | |
| AC- 40 x 160 (4/E) | |
| AC- 40 x 200 (5/E) | |
| AC- 40 x 240 (6/E) | |
| 8” Inch RO Membrane Housing (1 to 6 Elements) | AC- 80 x 40 (1/E) |
| AC- 80 x 80 (2/E) | |
| AC- 80 x 120 (3/E) | |
| AC- 80 x 160 (4/E) | |
| AC- 80 x 200 (5/E) | |
| AC- 80 x 240 (6/E) |
